16mm Coreless BLDC Motor With Planetary Gearbox TSL-HP12X-1W2W6-24-4
♦ Basic Info:
- Brand:TSL
- Origin:China
- Motor Model:TSL-HP12X-1W2W6-24-4
- Rated Voltage:DC 24V
- No-load Speed:6500±10% RPM
- Rated Torque:0.3 Kgf.cm
- #More Specifications
- #Outline Drawing
- Download Datasheet
♦ Typical Applications:Dexterous Hand
16mm Planetary Gear Motor Specifications

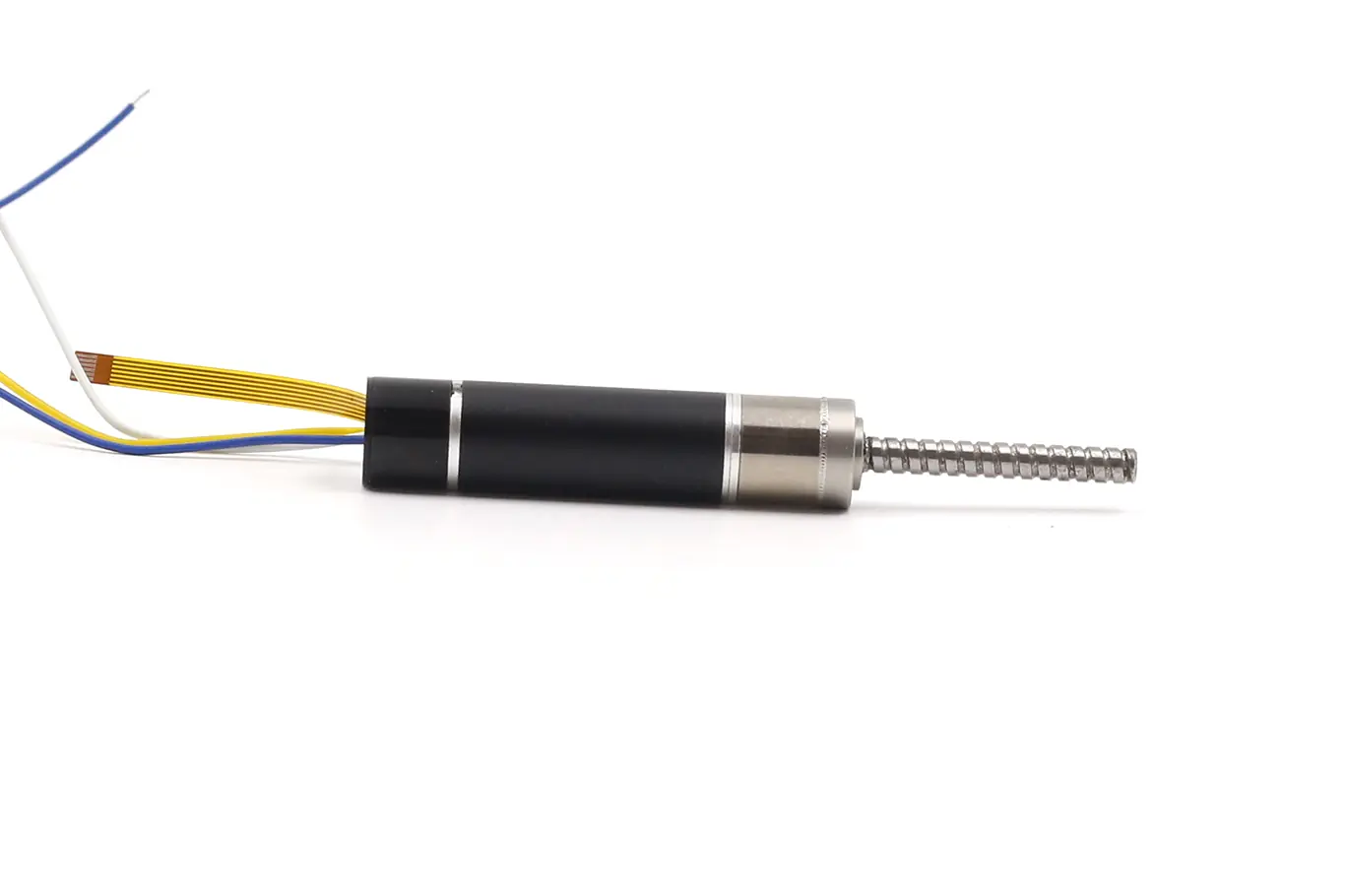

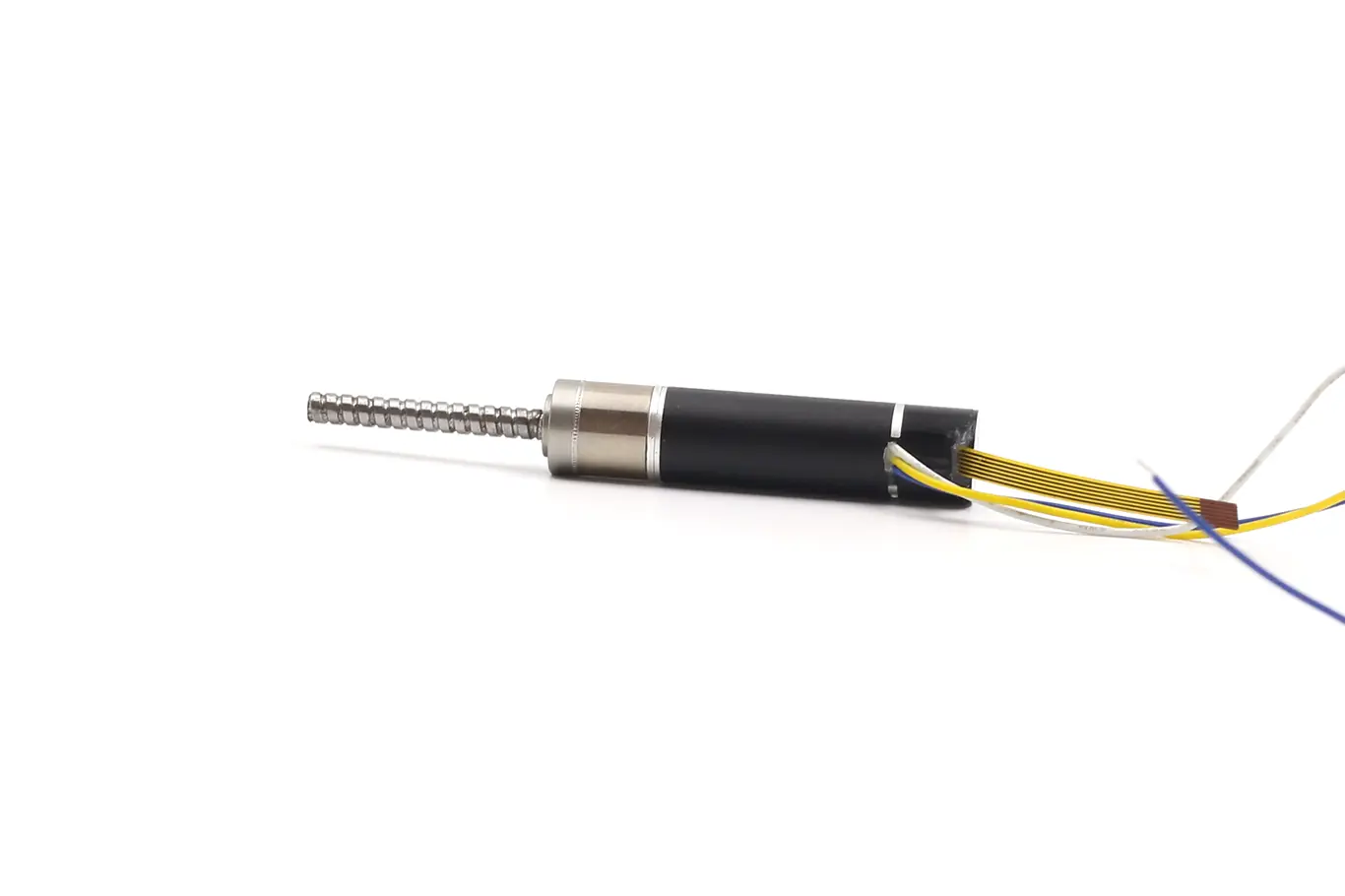

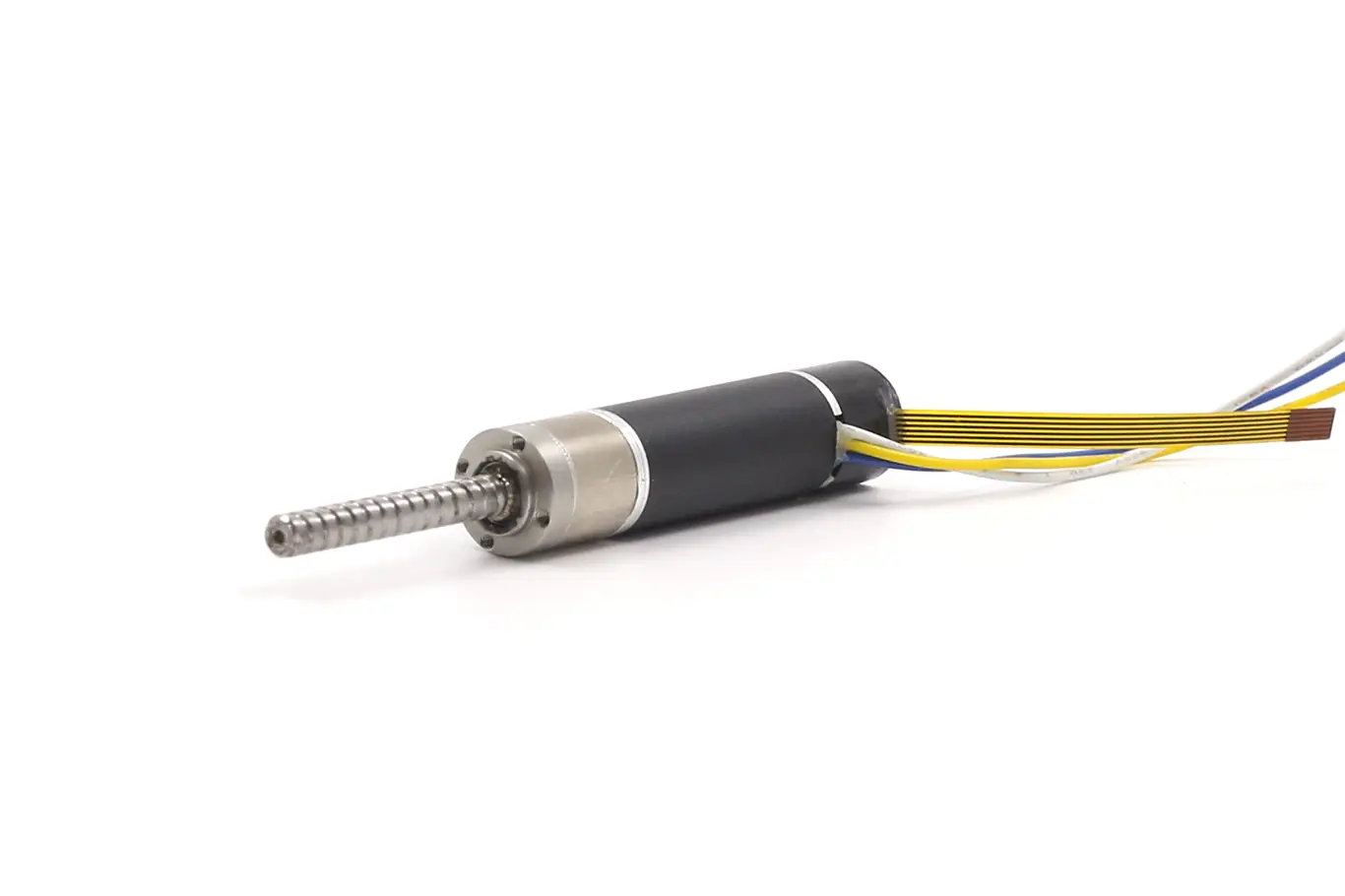

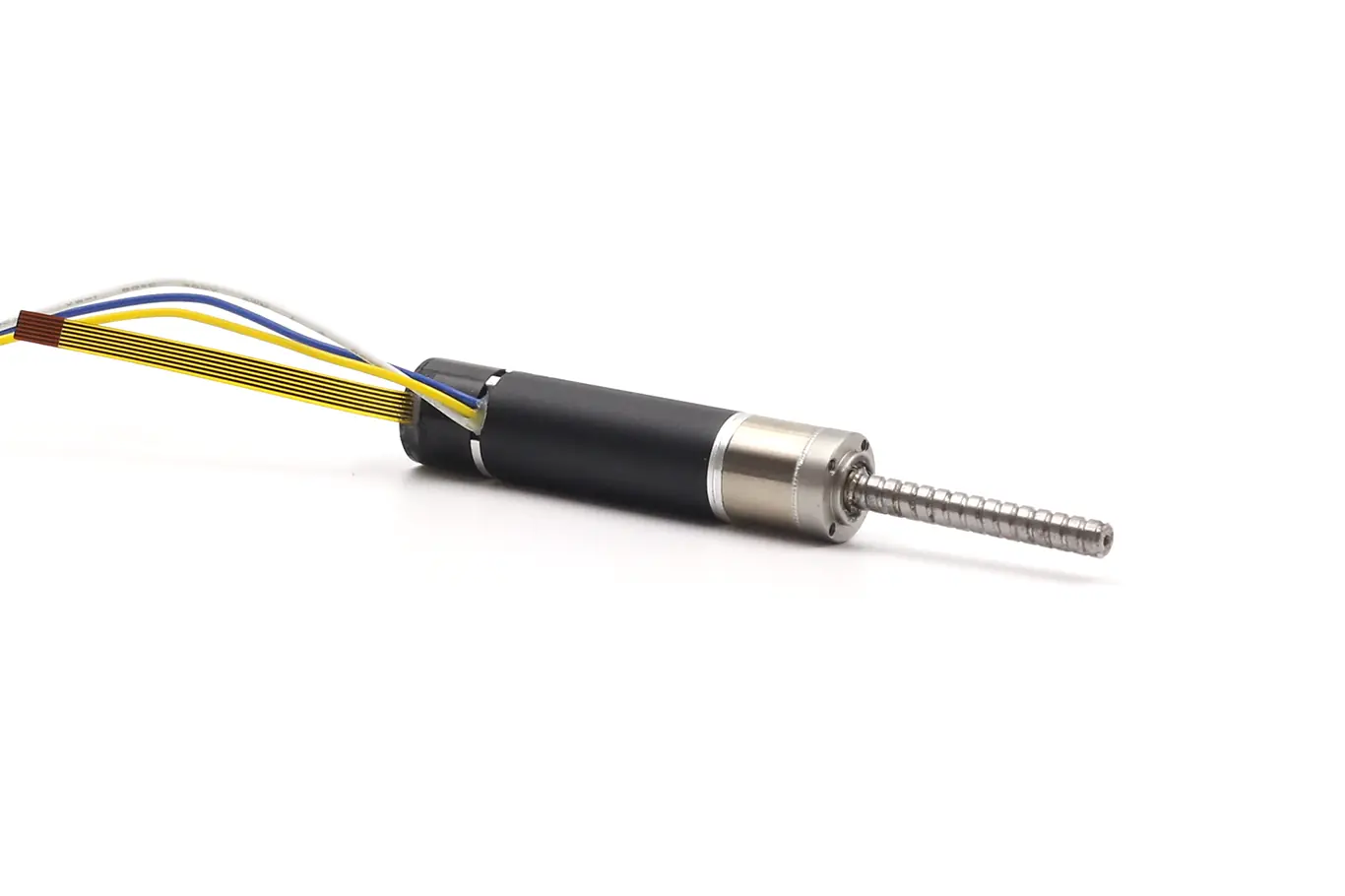

This compact powerhouse integrates a premium planetary gearbox with a high-precision 0402 ball screw. Engineered to eliminate axial play, it comfortably withstands axial loads of 90N and above. It delivers the perfect combination of smooth linear motion, high torque density, and exceptional reliability in a remarkably micro form factor.
Equipped with an advanced 14-bit absolute encoder and SPI output, this 16mm planetary gear motor provides flawless single-turn absolute position tracking. Whether you are developing cutting-edge medical devices, advanced robotic hands, or precision UAV components, it offers the ultimate solution for applications where space is limited but precision cannot be compromised.
| Parameter | Value |
| Reduction Ratio | 1:4 |
| Rated Voltage | 24 V DC |
| No Load Speed | 6500±10% RPM |
| No Load Current | ≤150mA |
| Rated Speed | 5128±10% RPM |
| Rated Current | ≤400mA |
| Rated Torque | 0.3 Kgf.cm |
| Stall Current | ≤1200mA |
| Stall Torque | ≥1Kg.cm |
| Stall allowed or not | No |
💕The 16mm planetary gear motor’s technical specifications are for guidance，we offer custom solutions upon request.
⇒Unit Coversion: 1 g·cm ≈ 0.098 mN·m ≈ 0.014 oz·in；1 mm ≈ 0.039 in；1 g ≈ 0.035 oz

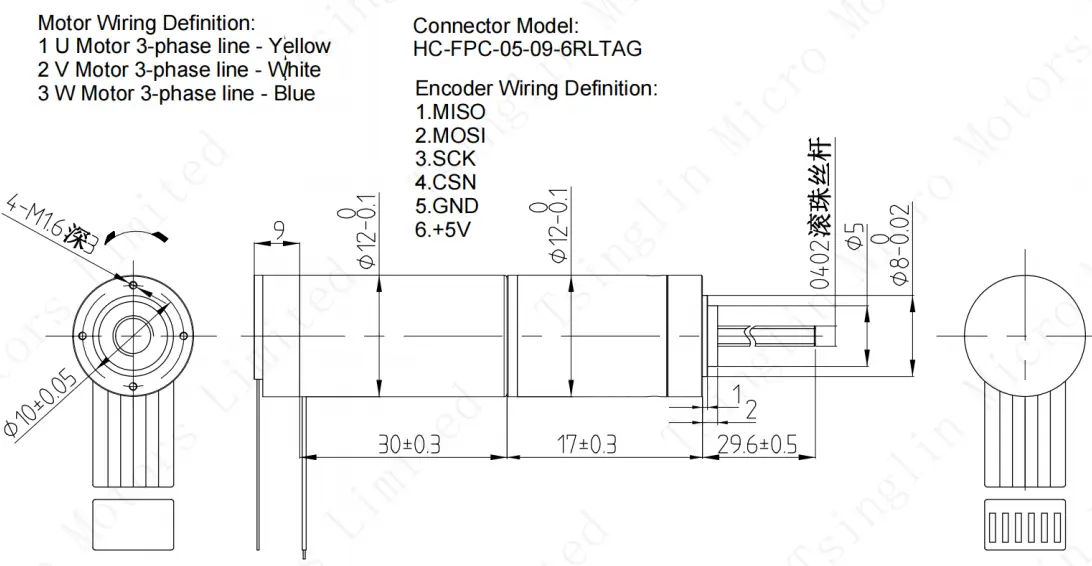

Small 16mm Planetary Gear Motor Mechanical Drawing
Unless otherwise stated, all dimensions are in millimeters. The provided drawings are for illustrative purposes; please contact us to verify precise specifications.
