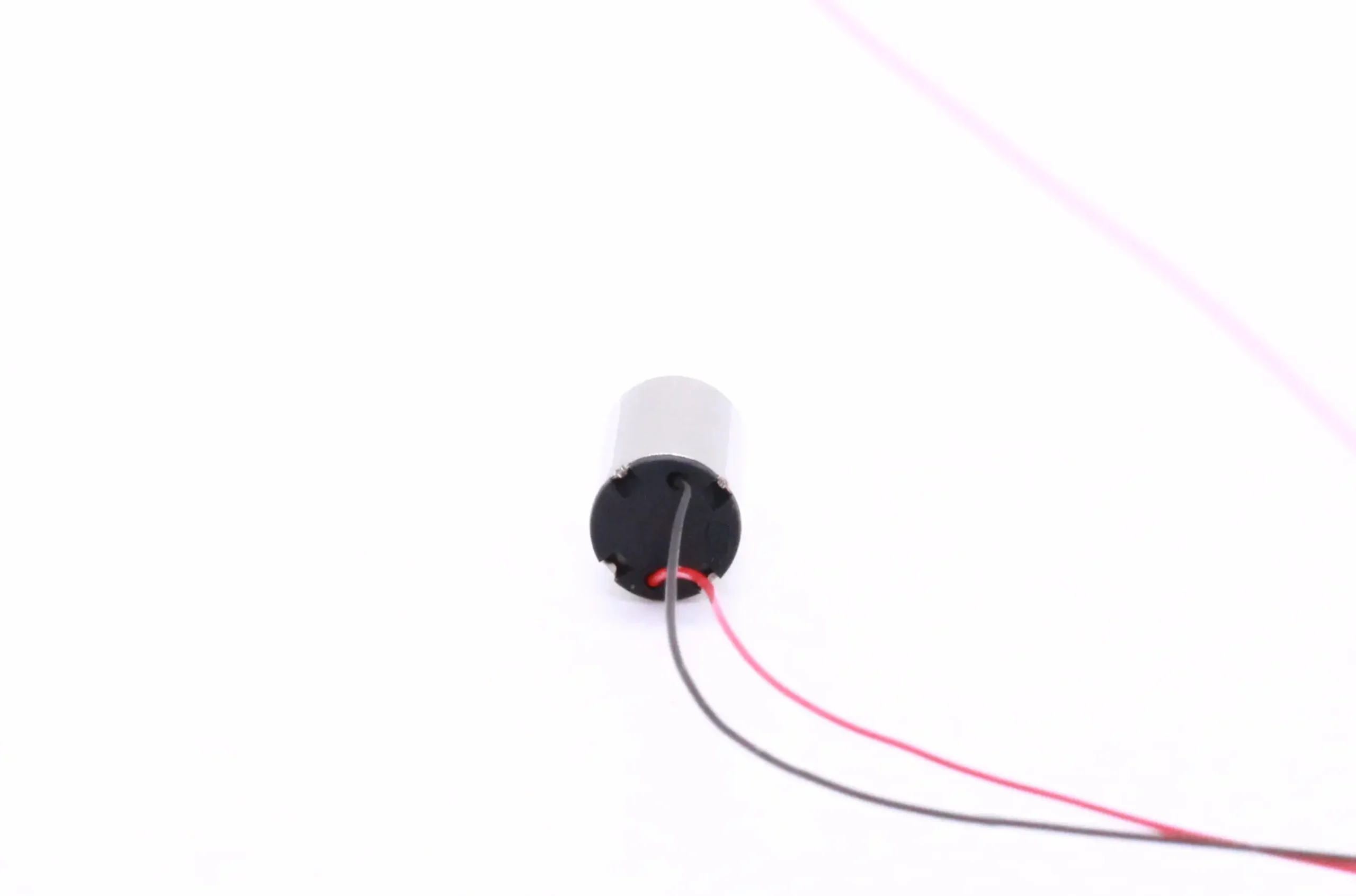

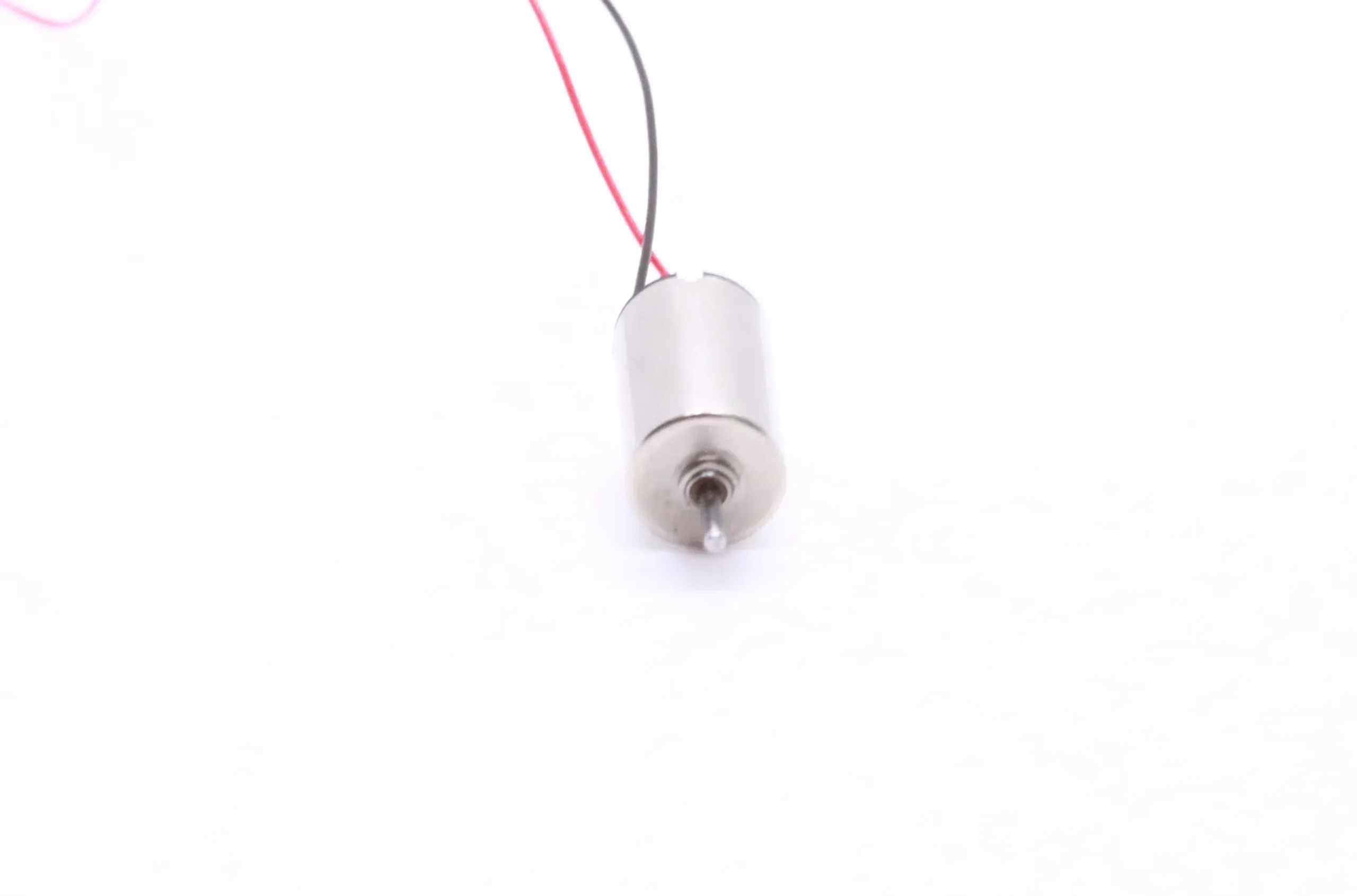

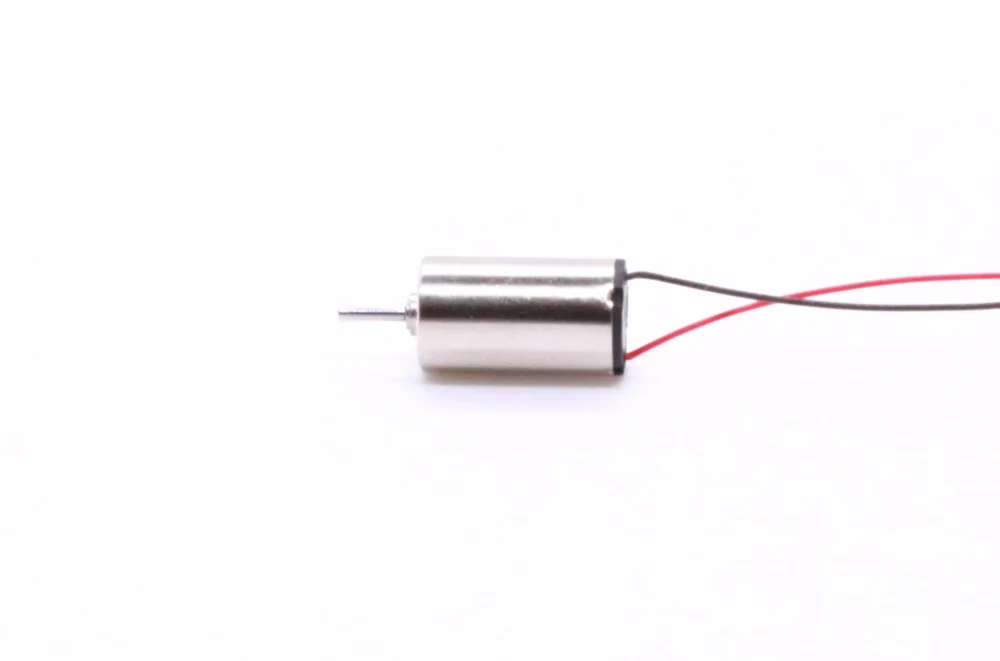

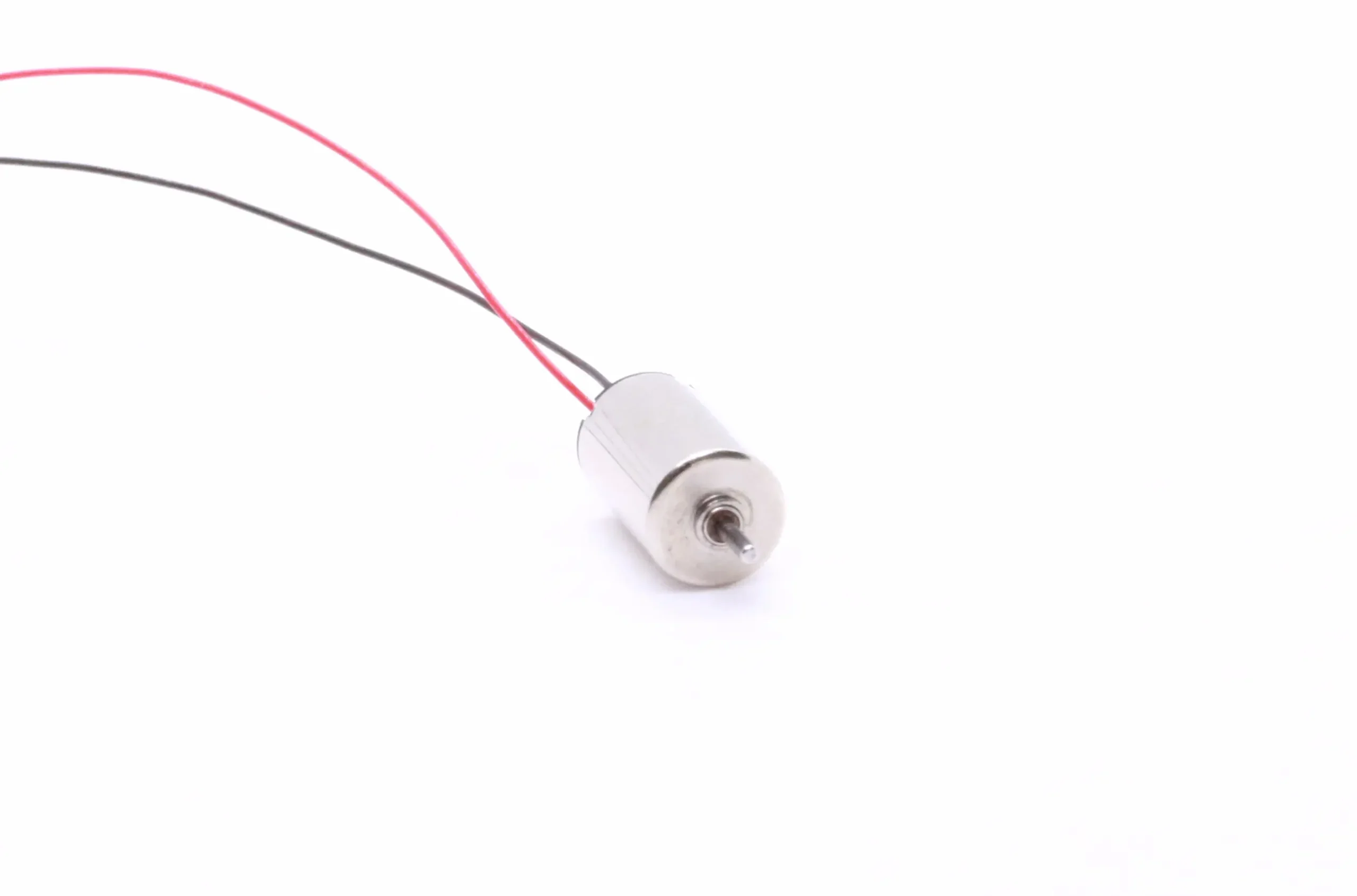

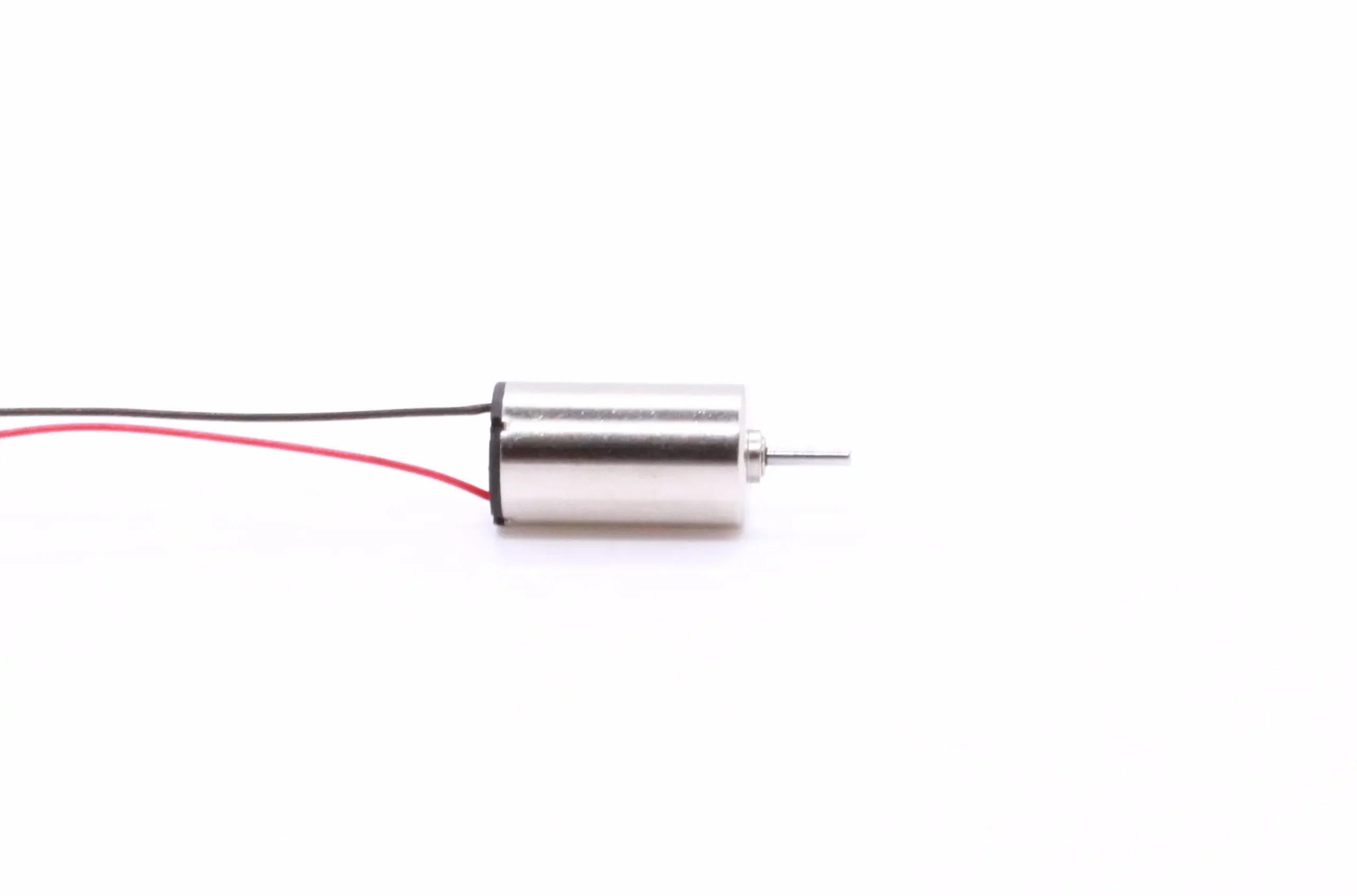

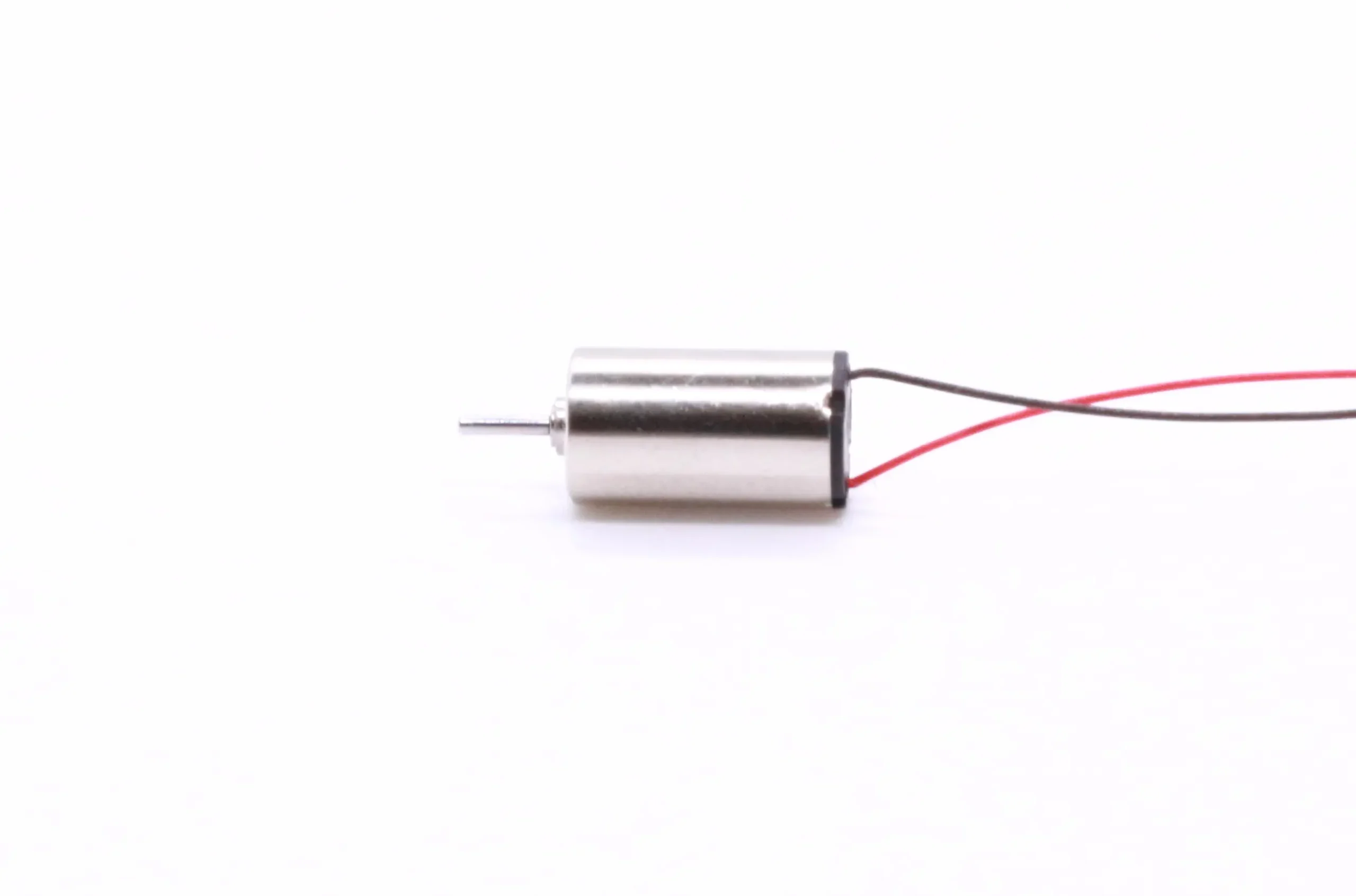

High-Speed Micro Coreless Motor Model TSL-D0610 Parameter

Coreless motors are characterized by rotor windings wrapped in a honeycomb shape to create a self-supporting cylindrical. This removes the weight and inertia that comes with a rotating rotor, making quick acceleration and deceleration feasible. All the components of the core produce torque and smooth the operation. It also has the highest acceleration rates.

6mm Micro Coreless Motor TSL-D0610 Motor Outline Drawing

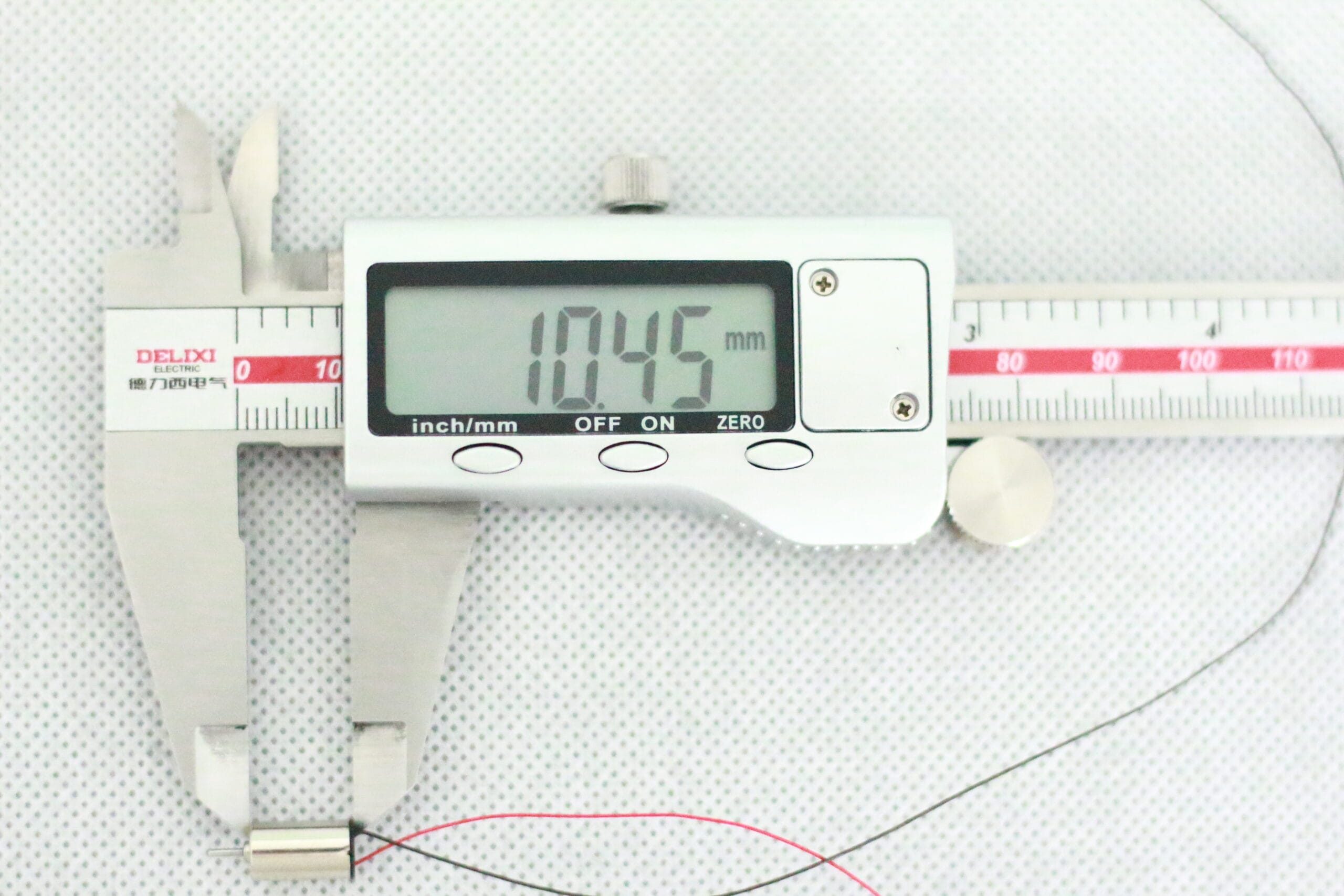

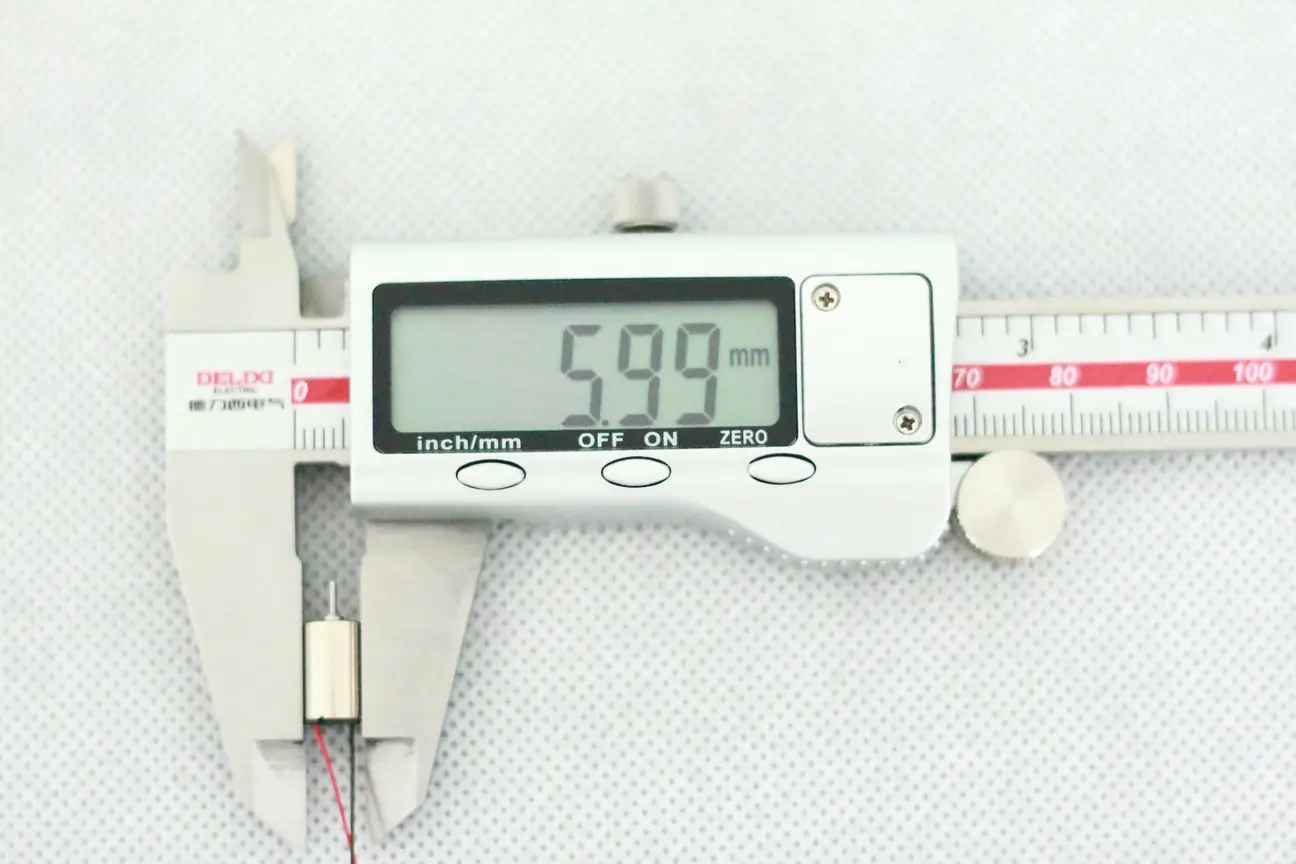

Ultra-compact High-Speed Speed PerformanceEnjoy unbeatable speed in a small package by using the NFP-D0610-1.3-7 coreless DC motor. Its dimensions are just 6mm in diameter in length and 10.3mm long, the mini motor runs at 3.7V and delivers an astounding 42000 RPM. The compact size of this motor doesn’t degrade its performance, which makes it perfect for precision instruments, micro drones and medical devices in areas where space is at limited, yet high-speed operation is essential.

Remarks:

1) Dimension with “*” in the drawing can be adjusted according to customer’s requirement.
2) Motor can be designed upon customer’s requirements on performance, installation, power connection method and motor dimension.
3) Motor can be mounted with various shape and sizes of eccentric weight which is made of iron, brass or ferro-alloy to become vibration motor.
⭐1g=0.035oz     1inch=25.4mm    1g.cm=0.098mN.m   1oz=28.35g    1mm=0.0394inch    1mN.m=10.2g.cm

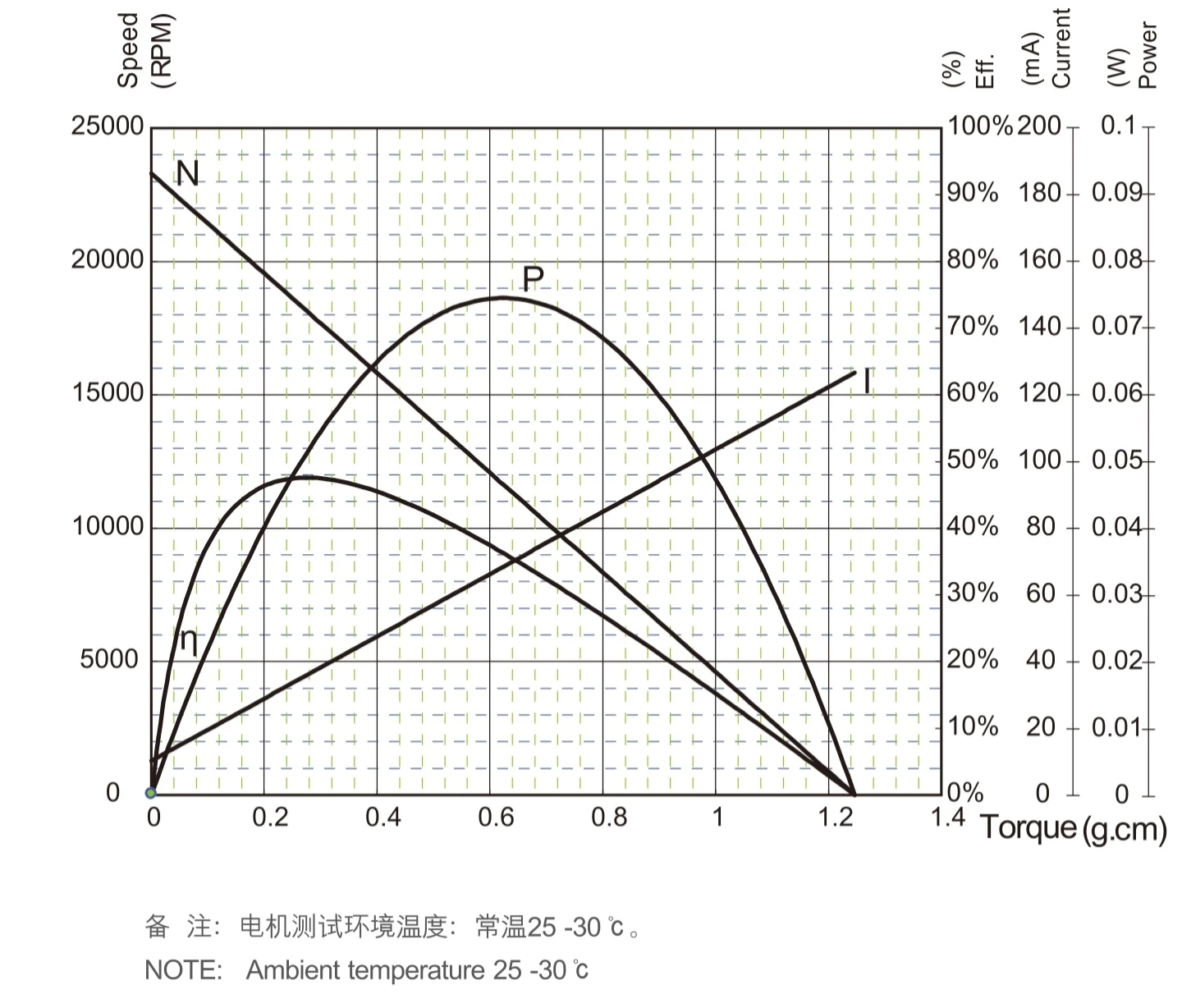

3V Micro Coreless DC Motor Typical Performance

Keywords:

6mm coreless DC motor, TSL-D0610,3V micro motor, 52200RPM motor, high-speed coreless motor, miniature DC motor, micro coreless motor, compact high-speed motorr,micro coreless motor

Payment:
1.Payment methods : PayPal, T/T

Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be delivered within 1-3 business days following the payment.
3.If you’ve not received the item within the Delivery Time Please contact us via email with any concerns. We usually give you a response within 24 hours. If you don’t, please look through your email account. We will try to help you resolve the issues.
4.Please ensure that your address is in line with the address of your final shipment before you make payment.

FAQ for micro coreless motor

Q：What is coreless dc motor?

A:DC coreless motors, as the name implies, do not contain an iron core in the rotor. Instead, copper wire windings are arranged in a basket configuration, rotating around the outside of a cylindrical magnet.

If you want a video to explain the principle of micro stepper motor, you can click on this link:https://www.youtube.com/watch?v=YD8AS7dF3eQ

Q:Can micro coreless motor Be Customized?

A: Yes,micro coreless motor can be customized. TSL Motors, a top manufacturer, offers options to adjust torque, speed, and voltage. This ensures the motor meets the specific needs of your application.

Q: How do I place an order?

A: Send us an inquiry and we will send you a quote – make arrangements – confirm the sample – sign the contract/deposit mass production – delivery ready for delivery. Balance/delivery

Q: What about Sample Order?

A: Sample are available to you. Contact us for specifics. If we charge you a cost for the sample, you can take it at ease, as it will be the refund you receive when you make a formal order.

Q: If it is a customized version the information you provide, what should you include?
A: You should give the fundamental specifications of the motor, for example Dimensions Applications, Sizes as well as Voltage, Speed and Torque. It is better to provide an application-specific prototype drawing to us when you can.
