Oriental Motor, Nanotec, Portescap, MOONS’, and TSL MOTOR show the strongest overall competitiveness. Each has a clear strength. These strengths include high reliability, low backlash and modularity, miniature precision control, transparent pricing and fast delivery, and OEM/ODM customization.

TSL MOTOR stands out in particular. It offers a full range of stepper motors. It also has machined planetary gearboxes covering 8-56 mm. This gives it greater depth in combined mechanical, electrical, and transmission customization.

Choose Oriental Motor first when stock availability and fast deployment are priorities. Compare Nanotec and Oriental Motor when low backlash and system-level matching matter most. For miniaturized products and medical or analytical equipment, evaluate Portescap and MOONS’ first.

TSL MOTOR is a strong candidate for projects that need good value and a wider choice of specifications. It has a broad product portfolio. It also has mass-production experience with 8-16 mm miniature gearboxes.

Ranking Criteria

This ranking is based on five core dimensions:

1) Product Breadth

Does the supplier offer a complete product range? This should include standard stepper motors, closed-loop stepper motors, planetary gearboxes, linear actuators, and drives and controllers. It should also cover many sizes, from miniature to medium and large.

2) Planetary Gear Expertise

Does the supplier have mature planetary gearbox design and mass-production capability? Key factors include backlash control, gear accuracy, service life, efficiency, torque density, and coverage of important sizes such as 8-56 mm.

3) System Integration

Can the supplier provide a system-level package of motor, gearbox, encoder, drive, and controller? It should also support engineering parameter matching, selection tools, closed-loop control, and application optimization.

4) Manufacturing and Supply Reliability

This dimension considers production-line scale, lead time, global supply-chain stability, quality consistency, and inventory. It also considers the ability to provide stable long-term supply.

5) Application Penetration

This dimension evaluates application depth in industrial automation, medical equipment, analytical instruments, robotics, and precision motion control. It also considers recognition among engineers during product selection.

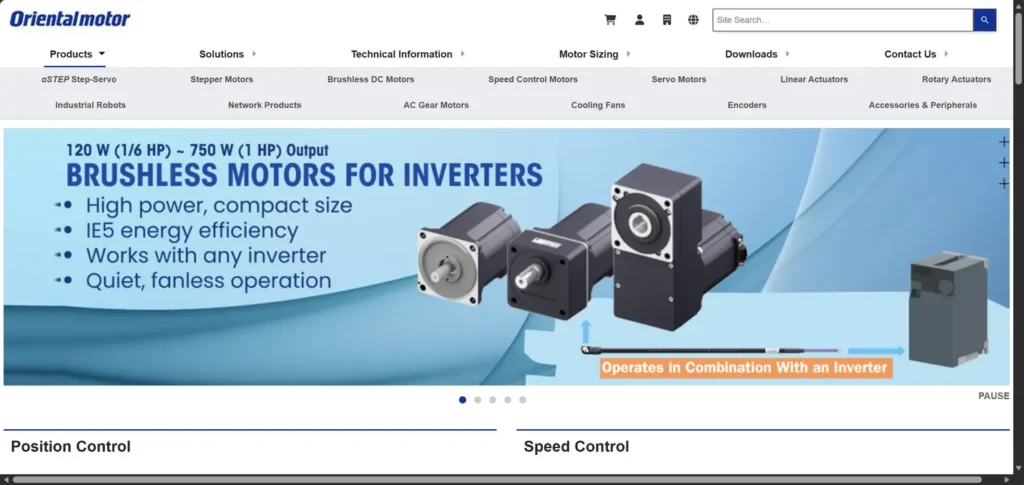

 Oriental Motor

Oriental Motor is a classic Japanese motion-control brand. It began as a handmade motor business in 1885. It has grown into a global company covering stepper motors, servo motors, AC and BLDC motors, actuators, robots, and thermal-management products.

Its strengths include a strong brand reputation, a broad product range, global technical support, and a mature delivery system. It also has a high technical barrier and deep engineering experience in geared stepper motors.

Strengths and Advanced Technologies

Oriental Motor is known for industrial-grade reliability and mature closed-loop stepper technology. Its most representative products include PKP stepper motors, AZ Series αSTEP closed-loop systems, and matching PLE planetary gearboxes.

These products offer long service life and strong consistency. Backlash control is stable. Other advantages include a battery-free mechanical absolute encoder, servo-level positioning accuracy, and smooth low-speed operation.

Relative Weaknesses

Compared with the other four suppliers, Oriental Motor is less competitive in flexibility and cost structure.

Its planetary gearboxes are less modular and offer less low-backlash depth than Nanotec. Its miniature and high-performance compact motion products are weaker than Portescap. Its value and delivery speed are less competitive than MOONS’. It also offers less deep mechanical, electrical, and gearbox customization than TSL MOTOR.

Overall, Oriental Motor is strongest in stability, standardization, and global support. It is less competitive in flexibility, miniaturization, cost, and customization.

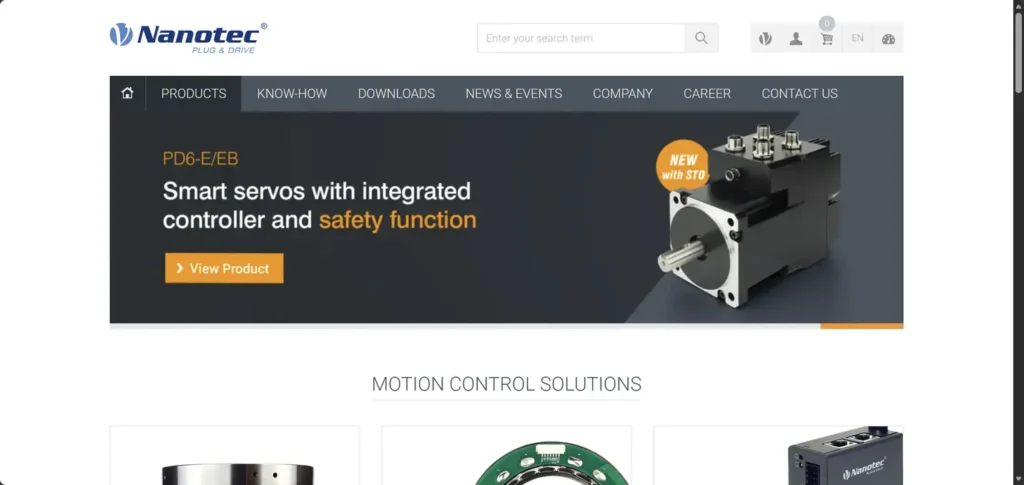

Nanotec

Nanotec is a leading German precision motion-control brand. It is known for high-performance stepper motors, smart servo systems, planetary gearboxes, and drive and control systems. European engineers often choose it for industrial automation, medical equipment, analytical instruments, and robotics.

Nanotec offers deep modularity and strong low-backlash planetary gearbox performance. Its system-level combinations are highly flexible. It can also provide a complete closed-loop solution with a motor, gearbox, encoder, drive, and controller.

Strengths and Advanced Technologies

Nanotec provides complete closed-loop solutions with motors, gearboxes, encoders, drives, and controllers. It supports industrial protocols such as CANopen and EtherCAT. It also provides mature commissioning tools and engineering documents.

Its smart servo and closed-loop stepper platforms perform well in smooth low-speed motion, dynamic response, and control accuracy. They suit demanding applications such as medical equipment, analytical instruments, and industrial automation.

Relative Weaknesses

Nanotec is less flexible in cost and delivery than MOONS’ and TSL MOTOR. Its prices are relatively high. Inventory and production capacity are less flexible. This weakens its competitiveness in high-volume or fast-iteration projects. Its supply-chain scale is also smaller than that of Chinese suppliers.

Nanotec also has a smaller service network than Oriental Motor. In miniature and high-speed compact motion control, it trails Portescap. It lacks a high-end 20-22 mm miniature platform. Its advantages are therefore limited in multinational projects and miniature precision applications.

Portescap

Portescap is a precision motion-control brand with Swiss origins. It is known for miniature brushless and brushed motors, hybrid stepper motors, disc-magnet stepper motors, and high-performance planetary gearboxes. It is a key supplier for medical devices, life sciences, analytical instruments, and high-end industrial applications.

Its products cover sizes from 8 to 60 mm. It is especially strong in miniaturization, high speed, and compact high-torque platforms.

Strengths and Advanced Technologies

Portescap offers high-efficiency planetary gearboxes, such as the R22HT Series. It also uses low-noise gear designs and lightweight structures. Its products can run at high speed. They suit applications with strict limits on size, weight, noise, and service life.

Its modular combination capability is strong. Stepper motors, brushless motors, gearboxes, and encoders can be matched flexibly. This meets the precision motion needs of medical pumps, surgical tools, analytical instruments, and other high-end products.

Relative Weaknesses

Portescap has high costs, long lead times, and limited customization flexibility. It is therefore less suitable for cost-sensitive or fast-iteration projects. Its supply-chain scale is also smaller than that of Chinese suppliers. This reduces its competitiveness in high-volume or short-lead-time projects.

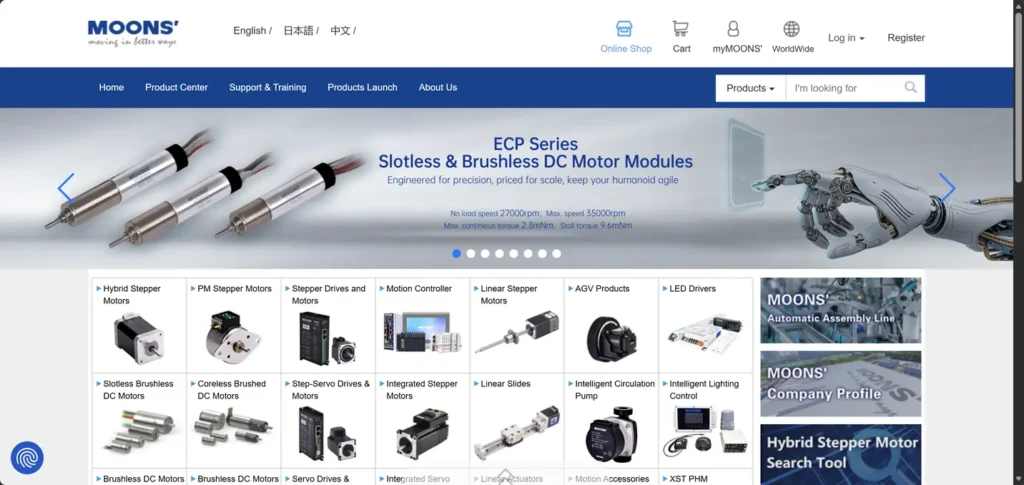

MOONS’

MOONS’ is a leading Chinese motion-control brand. Its products include stepper motors, closed-loop stepper motors, servo motors, planetary gearboxes, drives and controllers, and linear actuators. They are widely used in industrial automation, semiconductor equipment, medical devices, and robotics.

Its SKU coverage is very broad. It offers many combinations in mainstream sizes such as NEMA 17, 23, and 24. Engineers often select it for medium-size stepper systems.

Strengths and Advanced Technologies

MOONS’ is strong in closed-loop stepper platforms, integrated drive-and-control solutions, and cost-effective planetary gearboxes. Its iPOS and STF platforms support industrial protocols such as CANopen and EtherCAT. Its commissioning tools are mature. System integration is high.

Its gearbox range also covers many reduction ratios. Performance is stable. The products suit high-volume industrial applications.

Relative Weaknesses

MOONS’ is weaker than Nanotec in low-backlash, high-precision planetary gearboxes. Gaps remain in gearbox life, backlash control, and high torque density. It is also less specialized than Portescap in miniaturization and high-end medical motion control. Its products focus more on medium-size industrial applications. Coverage of ultra-precision applications is limited.

Compared with Oriental Motor, MOONS’ has a less developed global engineering-support system and weaker long-term supply capability. Compared with TSL MOTOR, its deep customization is less flexible. Its structure is also less competitive in 8-16 mm miniature applications.

TSL MOTOR

TSL MOTOR is one of the fastest-growing Chinese suppliers of miniature and small-to-medium motion-control products. Its range includes permanent-magnet stepper motors, hybrid stepper motors, planetary geared motors, linear actuators, and customized drive solutions.

Strengths and Advanced Technologies

TSL MOTOR develops and machines its planetary gearboxes in-house. Backlash can be less than 15 arcmin. It can also mass-produce 8-16 mm miniature planetary gearboxes with stable quality. These products are already supplied in large volumes for medical devices, consumer electronics, and small robots.

It has a clear advantage in miniaturization. Its permanent-magnet stepper motors can be as small as 6 mm. Its hybrid stepper motors can be as small as 14 mm. These sizes are difficult for many suppliers to mass-produce.

Its customization capability is strong. It can quickly develop products for special mechanical structures, electrical specifications, gear ratios, and shaft types. It is one of the most flexible suppliers for small and medium OEM projects.

Relative Weaknesses

TSL MOTOR still trails the top three suppliers, Oriental Motor, Nanotec, and Portescap, in accuracy, life consistency, and high-end gearbox performance. The main gaps are in backlash control, gear-meshing noise, and long-term stability. Its products focus more on value and customization than on extreme performance.

Quick Selection Guide

Conclusion

There is no single best supplier for every project.

Oriental Motor suits projects that value stability, standardization, and global support. Nanotec suits applications that require low backlash, clear technical data, and system-level matching. Portescap suits medical equipment, analytical instruments, and miniature precision motion control.

MOONS’ suits mainstream industrial sizes and medium- to high-volume projects. TSL MOTOR suits miniaturization, cost-effective solutions, and deep OEM/ODM customization.

For standardized equipment, first consider brand maturity and stock availability. For non-standard equipment, give more weight to joint design capability, sample response speed, and mass-production support.

The final decision should be based on real specifications, sample testing, and supplier audits. Do not rely only on brand rankings, website content, or a single quotation.
